Being able to see various objects concealed in or under the clothes of a person, on or inside the body may be necessary in the following cases:
1. Systematic or selective control of passengers in airports, railway stations, the public at stadiums, theaters, concert halls, places of worship and other places of mass gathering.
2. Systematic or selective control of prisoners.
3. Control of personnel working with noble metals, precious stones.
4. Control at customs station.
5. Control of visitors at strategic and sensitive sites.
The goal of such control is to uncover any suspicious objects (metallic and non-metallic) and illegal substances concealed in and under clothes, in the shoes, on and inside the body. In other situations, it might also be desirable to screen people wearing prosthesis.
Today, the standard practice around the world is to use metal detectors, followed by pat-down over the entire body, or even thorough checks requiring the person to undress and be subjected to possibly humiliating controls. These procedures are demanding and embarrassing for both parties and prove to be time consuming. These problems are even more exacerbated in counties with cold weather where people wear a lot of warm and thick clothes.

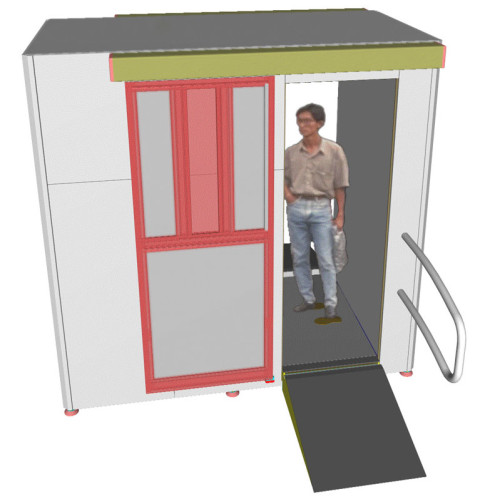

The emergence of modern technologies now makes it possible to conduct such controls using equipments such as X-ray Body Scanner “VZOR-TS”.
The new system of personal inspection VZOR-TS has the following features:
– x-ray optical scanning system is modified – scanning is performed by a narrow fan-shaped ray with a vertical orientation.
– the X-ray detector, registering the quantums in two ranges of X-ray spectrum is applied, which allows to distinguish between objects with different atomic weights.
– system’s design has a reversible circuit of “the passage” inspection , i.e. two doors, which allows to arrange the inspection procedure more effictively.
The radiation dose of the “VZOR- TS” is equivalent to the dose, received during 5 minutes flight at the altitude of 10,000 meters, which is only 15% of the daily dose received from natural background.
Wide dynamic range, high contrast sensitivity and spatial resolution of the X-ray Body Scanner «VZOR-TS» allow to detect objects of density near to human body tissues.
Powerfull software with user-friendly multilingual interface opens wide possibilities for development and application of new inspection techniques.
| Scanning area: | 2120 х 850 mm |
| Resolution: | 0.33 line pairs / mm |
| Detectivity: | copper wire Ø 0.19 mm |
| Penetration power: | steel of 24 mm thickness |
| Scanning time: | 3 sec |
| Throughput: | 3 persons/min |
| Radiation dose during one scanning: | less than 0,18±0,05 μZv |
| Power consumption: | less than 0.5 kW |
| Dimensions: | 2600 x 1440 x 2560 mm |
**These are the standard/draft specifications that can be customized as per the requirement of client.
